Diginoid Workstation (2003)

CLIENT: Hong Kong University.

CONCEPT: The Diginoid workstation shape was first conceived in studio as a curved private space for computer placement and private desk. Later the final shape was derived from a perfect oblated ellipsoid that could conceptually be filled out by attaching four workstations together and connecting them at the corner. The workstation unit expresses its flexibility by functioning as both private workspace and horizontal overhead lighting / support frame bridging across two vertical units (see illustration below). These pairs of workstations can then be closed by a projection screen between them, to begin to express a work cluster or media presentation center.

Metal parts were digitally produced by NC punch and laser cutter, fabric membrane was produced using digital sail making equipment, and clear tables produced using laser cutter.

Extended designs called for embedded photovoltaic membranes incorporated into the fabric of the workstation walls.

DESIGN TEAM: Final design, file preparations, manufacture, and assembly by A. Scott Howe, who also functioned as faculty advisor. Preliminary concepts contributed by grad student Richard Seewhy Lee in the Hong Kong University Department of Architecture MArch II fourth year design studio.

COST: HKD120,000 (approx. US$15,400).

DATE: 2003.

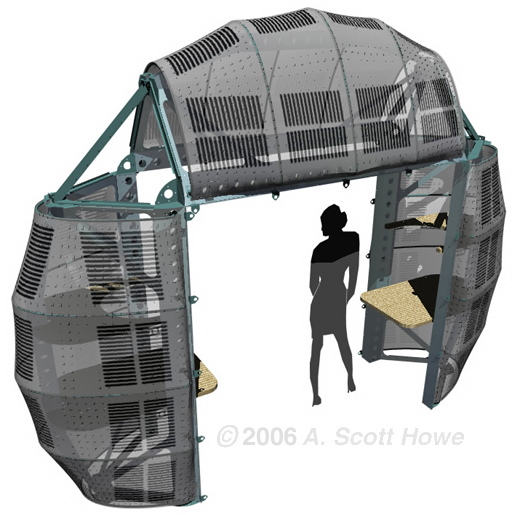

STATUS: Three workstation units were manufactured, along with two corner connectors to fill out a complete arch-shaped work area (see illustration below).

Other images and animations:

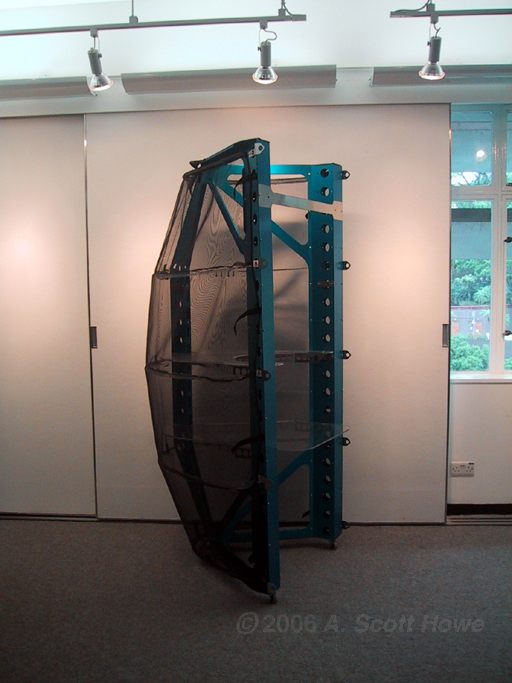

manufactured assembly

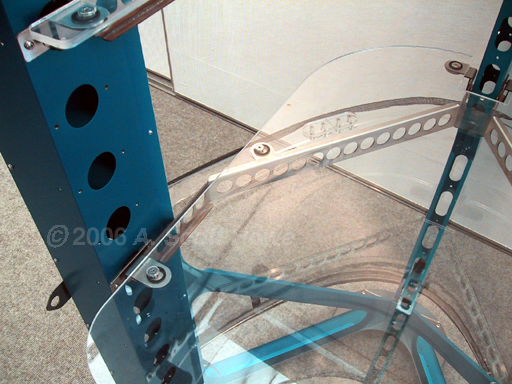

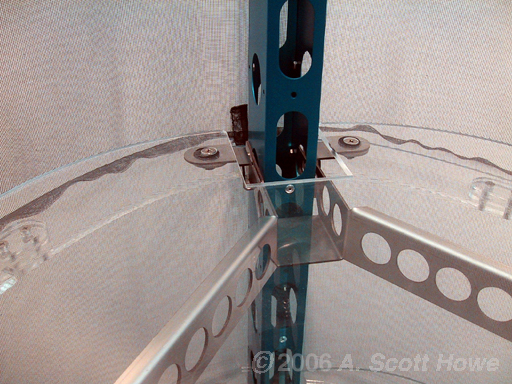

connection detail
